Anti Jamming Signal Recorder Electrical Test Equipment Strong Software System

HYLB-601 is an instantaneous signal recorder applied in industry signal analysis. It takes IPC as the core for data sample and process. Special design makes the reorder has a good performance in anti-jamming and easy operation.

Features

1. All channels are isolation from each other and system core circuit
2. Waveform zoom, translation and curve edit tools are integrated in software
3. Data statistics and position tools are integrated in software
4. Spectrum transformer and harmonic analysis tools are integrated in software
5. Vector analysis tools are integrated in software
6. AC RMS and power calculation tools are integrated in software
7. Correlation analysis of signals are integrated in software

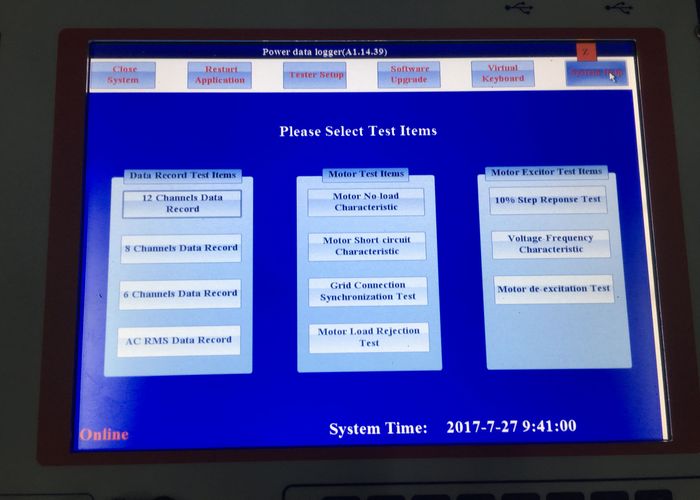

8. Generator and excitation system test template are integrated in software
9. Automatic upgrade interface of the tester make it easy to get latest software package and test template.
10. 12.1 inches LCD for show and the same size touch pad for operation.
11. Automatically makes WORD, EXCEL and JPG file test reports.
12 Upload data from tester to PC by flash disks

1. Analog signal sample channels 12
2. Optional ranges -450V~450V,-100V~100V,~10V~10V,-20mA~20mA,
-100mV~100mV (only 1 channel)
3. Sample error
- 450V~450V error<0.5V
- 100V~100V error <0.2V
- 10V~10V error <0.01V
- 20mA~20mA error <0.02mA
- 100mV~100mV error<0.5mV

4. Binary signal input interface 12
5 Binary signal voltage ranges DC 12~220V
6. Work condition
Power supply AC220V±10% ?
Power Frequency 50Hz/60Hz
Power consumption ≤60w
Temperature -10-50°C
Humidity ≤85%RH
Size 448mm′260mm′150 mm
Weight <10kg

Wuhan Huaying Electric Power Tech & Science Co.,ltd, founded in 1997, engaged in the designing, manufacturing and selling of electrical test equipments.

Our products include: HV Testing Instruments, Transformer Test Sets, Relay Test Set, Circuit Breaker Test Set, CT/PT Test Set, Cable Test Set, Power Plant Test Set, HV Meter, Signal Recorder, etc. They are abroad used in electric power, energy, metallurgical, chemical, mining industries.

We have obtained the ISO9001 quality system certification and all products conform to the international IEC or Chinese state standards. We have obtained honors such as Quality Management System Certification, title of High Technology Company, License of Manufacturing Measure Device.

Warm welcome customers to visit our company, and we will do our best to support you!
