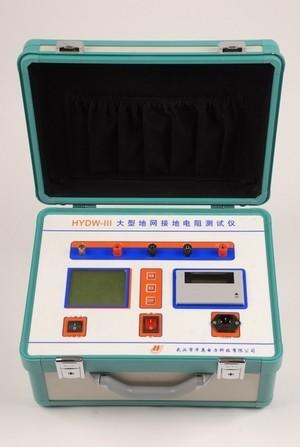

50 Hz Ground Test Equipment Ground Impedance Tester Double Frequency Sine Wave

1. Product Name:

Grounding resistance tester 5A

2. Equipment Description:

1. Measurement scope: 0~150Ω (including impedance of current pile)
2. Resolution: .001Ω
3. Measurement error: ± (reading×2%+0.005Ω)
4. Maximum output voltage: AC 400V (45Hz, 55Hz, double frequency, sine wave)
5. Maximum output current: AC 3A/5A (45Hz, 55Hz, double frequency, sine wave)
6. Current output gears: 3/2.5/2/1.5/1A, one gear every 0.5A, totalling 9 gears.
7. Anti-jamming capacity: power frequency resistance 50Hz voltage 10V
8. Requirement for measuring line:
Sectional area of cooper core of current line≥1.5mm2
Sectional area of cooper core of voltage line≥1.0mm2
9. Electric power supply: AC 220V±10%, 50Hz
10. Contour dimension: 440×350×210mm3
11. Instrument weight: 30kg

3. Features

1) Adopts new type frequency AC power supply

2) Adopts computer process control and signal process, well resolved the anti-jamming problem during the test.

3) Simplify the operation progress.

4) Improve the precision and accuracy of the test results.

5) Reduce the testing personnel labor intensity and test cost.

Wuhan Huaying Electric Power Tech & Science Co.,ltd, founded in 1997, engaged in the designing, manufacturing and selling of electrical test equipments.

Our products include: HV Testing Instruments, Transformer Test Sets, Relay Test Set, Circuit Breaker Test Set, CT/PT Test Set, Cable Test Set, Power Plant Test Set, HV Meter, Signal Recorder, etc. They are abroad used in electric power, energy, metallurgical, chemical, mining industries.

We have obtained the ISO9001 quality system certification and all products conform to the international IEC or Chinese state standards. We have obtained honors such as Quality Management System Certification, title of High Technology Company, License of Manufacturing Measure Device.

Warm welcome customers to visit our company, and we will do our best to support you!
