1000V 2500V Megger Insulation Tester WithReal Time Industrial Microcomputer Operating System

Product description:

Digital Insulation resistance tester embedded real-time industrial microcomputer operating system, ultra-thin wire-shaped sheets header with the perfect combination of dot matrix liquid crystal display, the instrument is with a variety of voltage output level (500V,1000V,2500V,5000V), high capacity, strong anti-interference, the pointer and digital synchronous display, AC-DC dual-use, simple operation, automatic calculation of various insulation index (absorption ratio, polarization index), all measured characteristics with the anti-power-down function . It is suitable for measuring high capacity transformers, transformers, generators, high voltage electric motors, power capacitors, power cables, surge arresters and other ideal insulation resistance test equipment.

Button function:

Technical table

Model	Measurement range	General introduction	Picture
HY2550 Insulation tester	2500V/0~100G; 5000V/0~200G;	Analog , Short Circuit Current:1mA
HY2000 Insulation tester	2500V/0~100G; 5000V/0~200G;	Analog and digital display; DC/AC Rechargeable Battery; Polarization Index and Absorption Ratio calculation; Short Circuit Current 3.3mA; Save test results in memory.

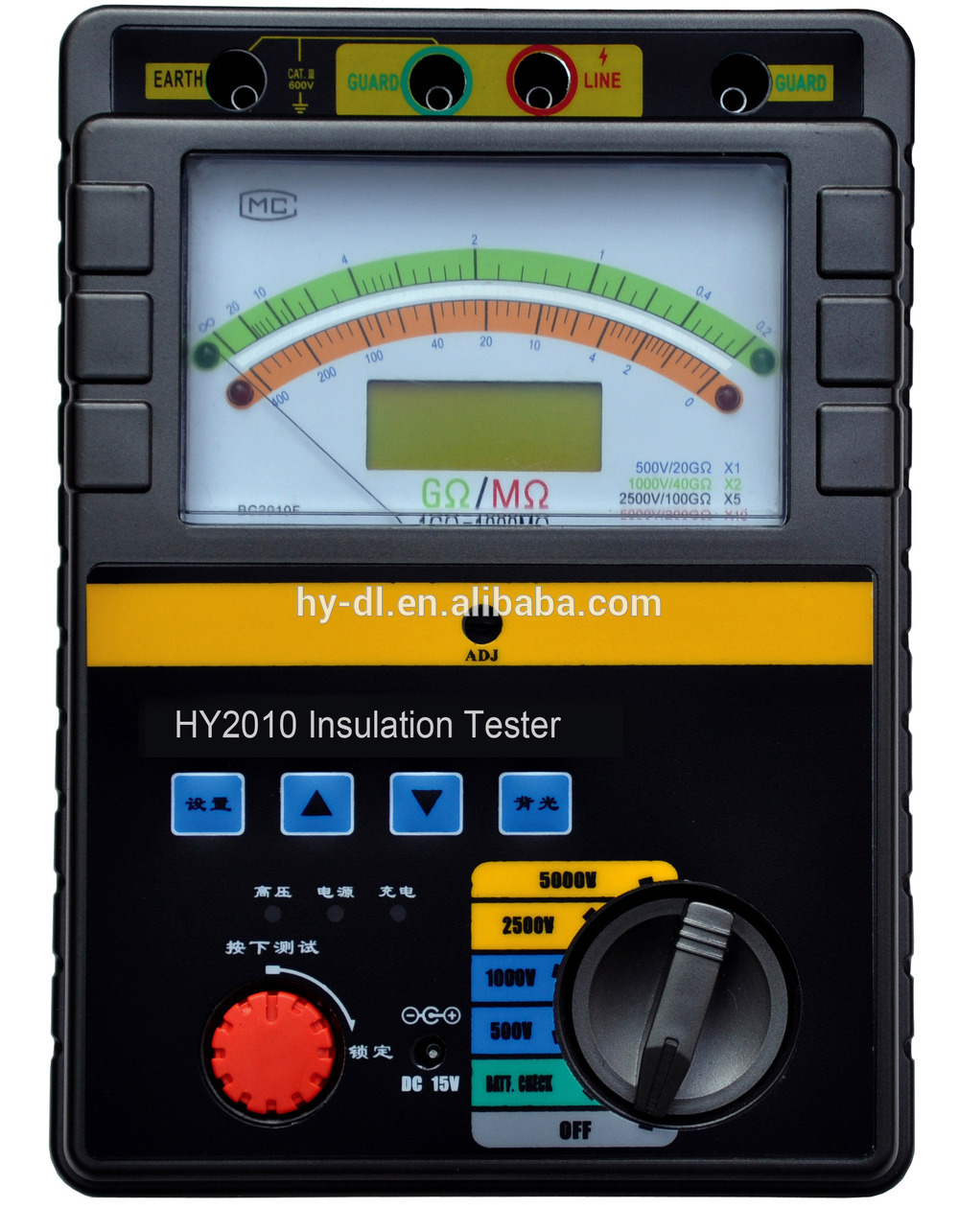

HY2010 Insulation tester	500V/0~20G; 1000V/0~40G; 2500V/0~100G; 5000V/0~200G;	Analog and digital display; DC/AC Rechargeable Battery; Polarization Index and Absorption Ratio calculation; Short Circuit Current 3.3mA; Save test results in memory.
HY2303 Insulation tester	2500V/0~100G; 5000V/0~200G; 10000V/0~400G;	Analog and digital display; DC/AC Rechargeable Battery; Short Circuit Current :1mA; Save test results in memory.

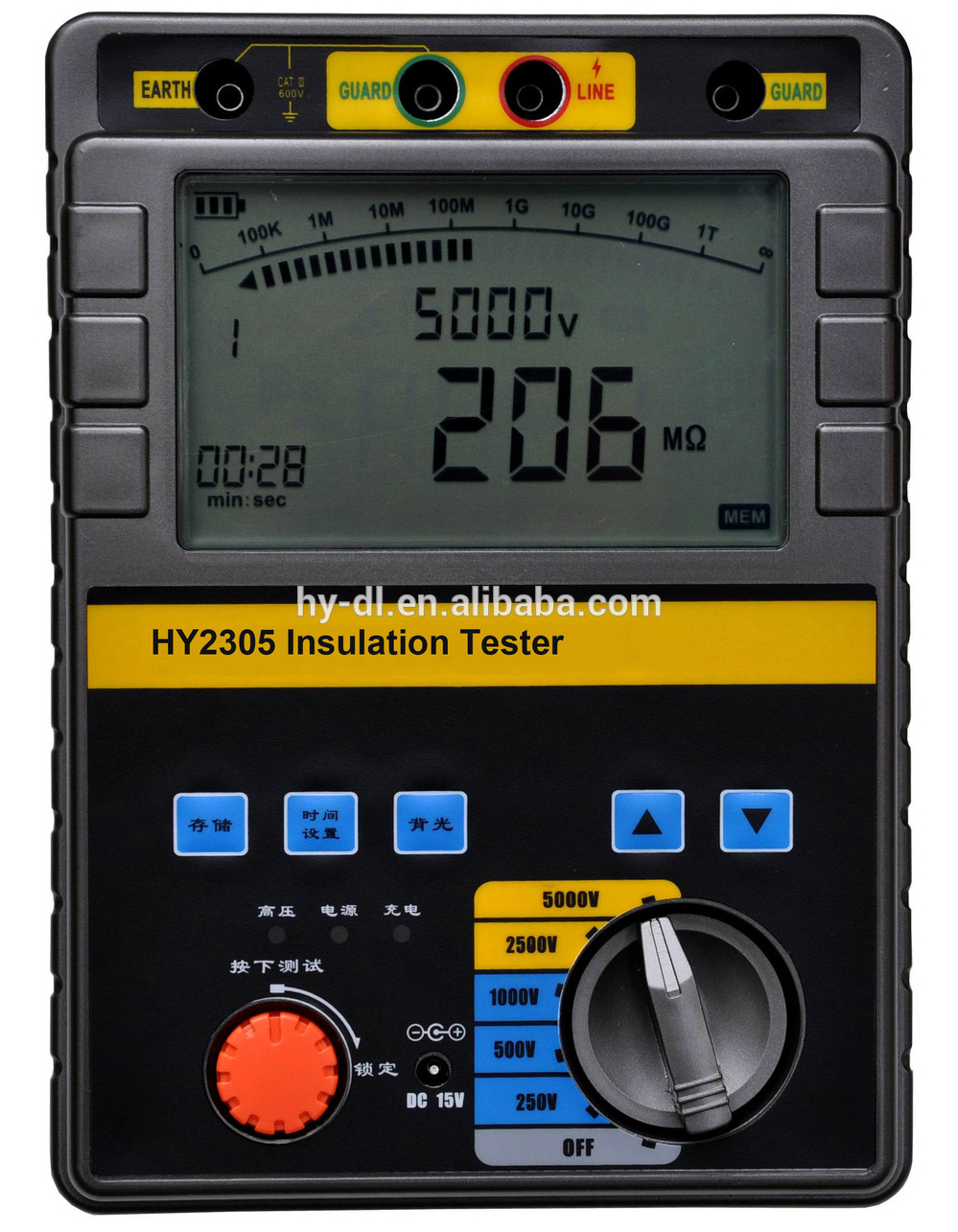

HY2305 Insulation tester	250V/0~10G; 500V/0~20G; 1000V/0~40G; 2500V/0~100G; 5000V/0~200G;	Analog and digital display; DC/AC Rechargeable Battery; Polarization Index and Absorption Ratio calculation; Short Circuit Current 3.3mA; Save test results in memory.
HY2306 Insulation tester	5000V/0~200G; 10000V/0~400G;	Analog and digital display; DC/AC Rechargeable Battery; Polarization Index and Absorption Ratio calculation; Short Circuit Current 3.3mA; Save test results in memory.

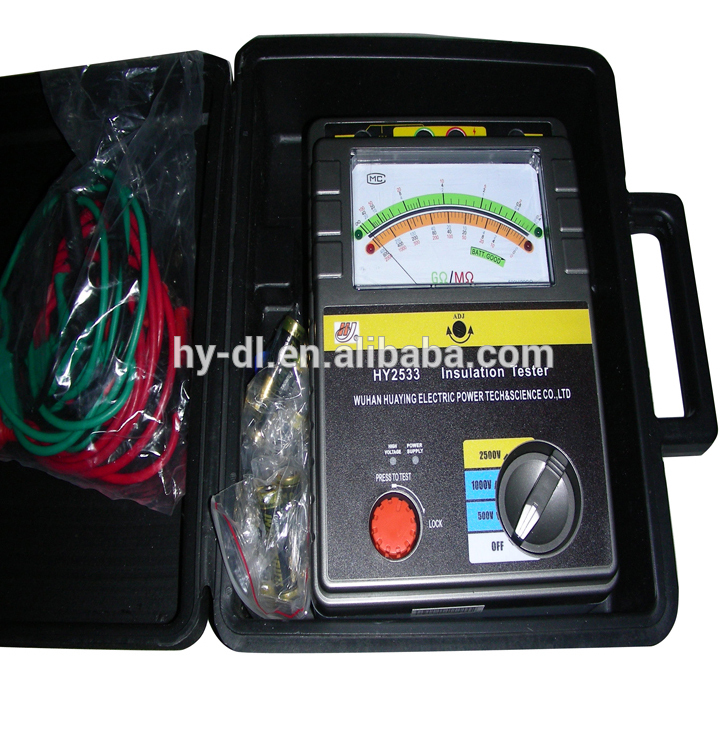

HY2533Insulation tester	500V/0~20G; 1000V/0~40G; 2500V/0~100G;	Analog, Short Circuit Current:1mA
