Professional Digital Megger Tester Insulation Resistance Test Meter Simple Operation

Ask Lasest Price
Brand Name :	Huaying
Certification :	ISO
Model Number :	Huaying Series
Price :	whhy818@163.com
Delivery Time :	7 Working Days
Payment Terms :	T/T L/C
Supply Ability :	200 sets per month

Add to Cart

Product Details
Company Profile

Professional Digital Megger Tester Insulation Resistance Test Meter Simple Operation

Professional Digital Megger Tester Insulation Resistance Test Meter Simple Operation

1. Display

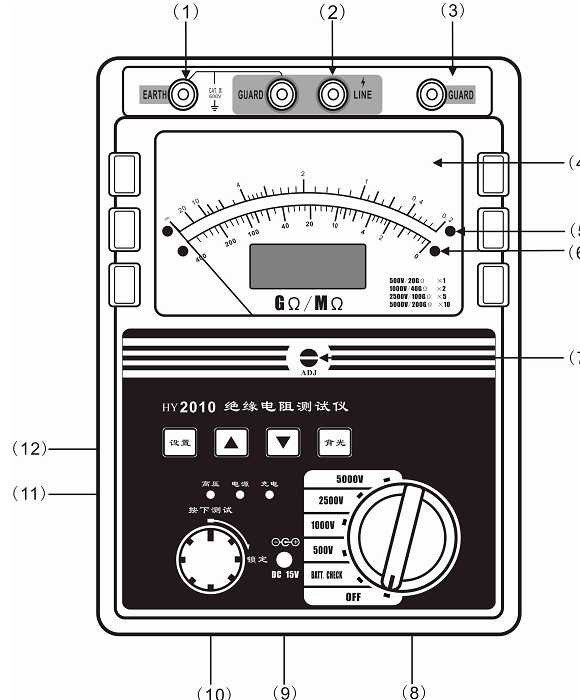

Table 2: Structure diagram illustration
S/N	Name	Function
(1)	EARTH	Connect to the housing of tested device or to earth
(2)	LINE	High voltage output port, connect to high voltage conductor of tested device
(3)	GUARD	Connect to high voltage retaining ring of tested device,to eliminate the influence of surface leakage current
(4)	Double Line of Scale Mark	Upper gear is green: 500V/0.2GΩ～20GΩ, 1000V/0.4GΩ～40GΩ, 2500V/1 GΩ～100 GΩ, 5000V/2GΩ～200 GΩ. Lower gear is red: 500V/0～400MΩ, 1000V/0～800 MΩ, 2500V/0～2000 MΩ, 5000V/0～4000 MΩ.
(5)	Green LED	Read scale of green gear ( GΩ) when green LED light up
(6)	Red LED	Read scale of green gear ( MΩ) when red LED light up
(7)	mechanical zero adjustment	Adjust mechanical pointer position to ∞ scale mark
(8)	Band Switch	Realize functions like output voltage selection, battery detection, power switch
(9)	Charging Socket	For C type tester, input voltage is 15V
(10)	Test Button	Puss Test Button to start test and lock the button by rotating clockwise after push
(11)	HV Indication Light	Display information like high voltage output, power working condition, charging condition and so on.
(12)	Buttons	Set:check the history test data :page turning to check data or modificate the data Backlight:when you press it the LCD screen will be off in 1 minute.

Overview

Digital Insulation resistance tester embedded real-time industrial microcomputer operating system, ultra-thin wire-shaped sheets header with the perfect combination of dot matrix liquid crystal display, the instrument is with a variety of voltage output level (500V,1000V,2500V,5000V), high capacity, strong anti-interference, the pointer and digital synchronous display, AC-DC dual-use, simple operation, automatic calculation of various insulation index (absorption ratio, polarization index), all measured characteristics with the anti-power-down function . It is suitable for measuring high capacity transformers, transformers, generators, high voltage electric motors, power capacitors, power cables, surge arresters and other ideal insulation resistance test equipment.

Model:HY2000

Panel description
