2. Technical Parameters:

1 Voltage OEM for clients

2 AC220V±10% power supply input

3 Output voltage:AC 0V~100KV

4 Rate of voltage rise: 0.5kv/s±10%, 2kv/s±5%, 3kv/s±5%,5kv/s±5%

5 Max test times: 9

6 Init wait times:0~999s

7 Stir time: 0~999s

8 Wait time: 0~999s

9 Measurement accuracy: ±(1% of full scale + 2 digits) Resolution:0.1KV

10 Temperature measurement:

11 Measurement range : 0°C to 70°C, or better

12 Temperature resolution : 1°C, or better

13 Operating temperature : up to 45°C

14 Storage:100 groups

15 7 inch colorful LCD with touch pad

16 Oil test vessel temperature measurement unit

17 All the selection can be done by touch panel with color LCD.

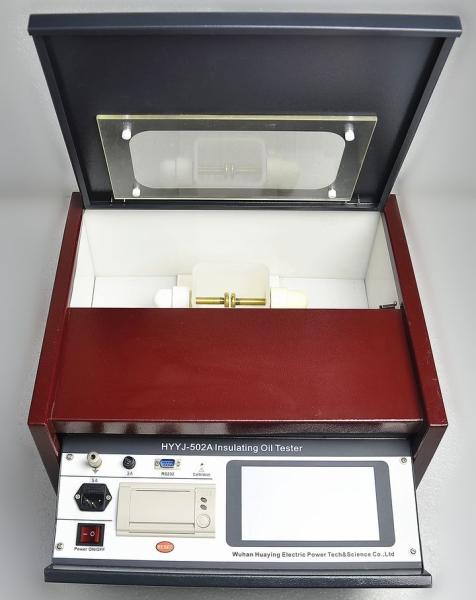

Standard configuration for HYYJ-502A

1. Insulating oil tester 1unit
2. Power line 1unit
3. Grounding line 1unit
4. Test vessel 1unit
5. ElectrodesMushroom, Flat and Spherical type 3pair
6. Feeler gauge1mm,2mm,2.5mm,4mm 4units
7. Insulation cover 1pair
8. Stirrer 2unit
9. Insulation glue 1unit
10. High voltage column 1pair
11. USB-RS232 connection line 1unit
12. Thermal print paper 2units
13. Fuse(5A/3A) 2units/2units
14. Instruction manual 1unit
15. disk 1unit
16. Inspection report 1unit
17. Pass certificate 1unit
