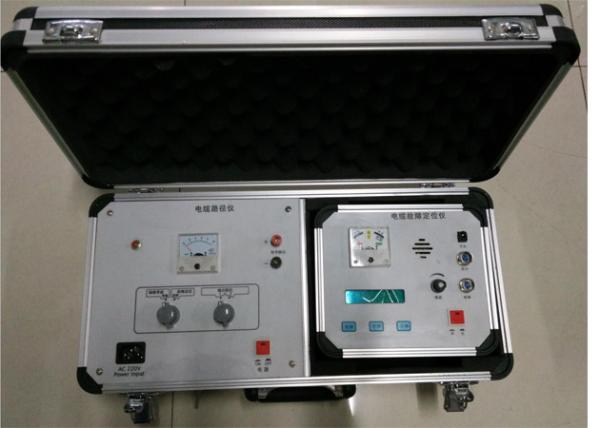

High speed sample system and high bandwidth input circuit are integrated in the tester to get the exact reflection curve of signal so that the distance of fault point to signal sample point can be calculated in high accuracy and high resolution. Special sound location tester configuration can be applied to locate the fault point more exactly.

The longest testing distance is 32KM (100KM for the open-wire line)
Testing .dead zone is 1M.
Resolution of reading is 1M
Power dissipation is 5VA
Service condition :

Environment temperature 0℃~+40℃

Terminal temperature -10℃~+50℃

Relative humility 90%RH

Dimension: 225×165×125mm3

Weigh: 2kg

Safety Warnings

1 The discharge sphere and divider should be connected to earth reliable when apply the high voltage impulse to test the cable.

2 The power supply of tester should be turned on every 3months so that the battery can keep alive

3 There is high voltage energy saved in the capacitor and the fault cable when high voltage impulse test mode is applied. The high voltage circuit should be discharged with discharge stick before make disconnection for test

4 The operator should be certificated for high voltage test when apply high voltage impulse test the fault cable
