Real Time Display VLF Test Set For Medium High Voltage Cable Dielectric Withstanding

Product Name:

Very Low Frequency Tester

Equipment Description:

The VLF testers (Generator) are suitable for
Testing cables, transformers, switchgear,
Rotating machinery, and other
Electrical apparatus.

Specifications:
1. Input: 220 ± 10% Volts AC, 50/60 Hz, single phase.
2. Output-Voltage. 60KV
3. Output frequency: 0.1Hz, 0.05Hz, 0.02Hz.
4. Stability of frequency: Fluctuation < 0.5%
5. Measurement accuracy: ± 3%.
6. Positive and negative voltage peak errors: ≤ 3%.
7. Voltage waveform distortion: ≤ 5%

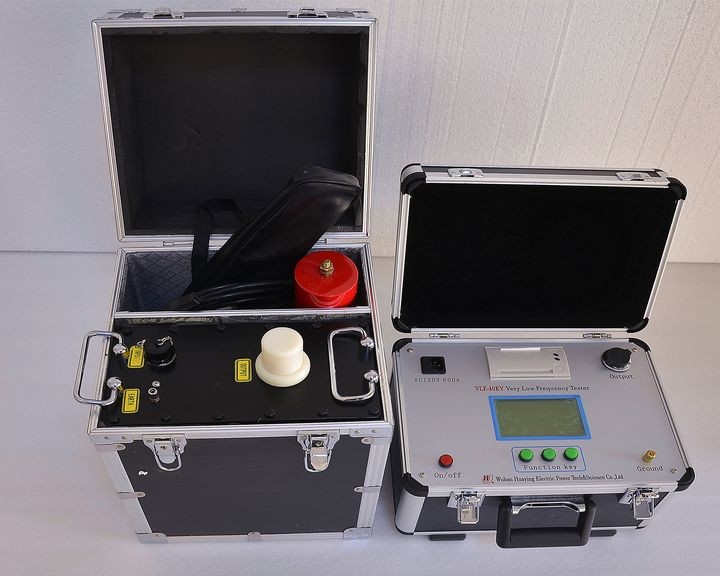

8. Construction: In two units: Controller and Booster...
9. Ambient conditions of use: Temperature Indoor and outdoor: -10ºC to + 50ºC.
10. Humidity: ≤ 85%

Main Functions:
1. Easiest to use Fully automatic microcontroller
2. Built-in printer
3. True sine wave output
4. Real-time display of actual output waveform
5. Ergonomic, menu guided, large backlit LCD
6. Storage of test results for later retrieval and print.
7. Over voltage and current protected
8. Variable frequency 0.1Hz, 0.05Hz, 0.02 Hz
9. Data of current, voltage and waveform directly sampled at HV side.
10. AC testing does not degrade good cable insulation
11. Harmful space charges are not injected into the cable insulation
12. No traveling waves are generated during testing
13. Rugged and reliable design less prone to failure from transients

Safety Features:
1. Short circuit protected.
2. Status display of all important safety functions and messages.
3. Safe, easy to use operation with emergency off and key switch lock-out.
4. Fully integrated discharge circuit to safely ground the DUT after testing.
5. Zero start interlock.
6. Zero voltage switching.

Models:

Wuhan Huaying Electric Power Tech & Science Co.,ltd, founded in 1997, engaged in the designing, manufacturing and selling of electrical test equipments.

Our products include: HV Testing Instruments, Transformer Test Sets, Relay Test Set, Circuit Breaker Test Set, CT/PT Test Set, Cable Test Set, Power Plant Test Set, HV Meter, Signal Recorder, etc. They are abroad used in electric power, energy, metallurgical, chemical, mining industries.

We have obtained the ISO9001 quality system certification and all products conform to the international IEC or Chinese state standards. We have obtained honors such as Quality Management System Certification, title of High Technology Company, License of Manufacturing Measure Device.

Warm welcome customers to visit our company, and we will do our best to support you!
